Handheld Single Phase Relay Test Kit Open Circuit Protection

Brand Name : HNMC

Model Number : MCRT43N

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 4-8weeks

Packaging Details : wooden package

Price : Negotiable

Supply Ability : 30 sets per month

Voltage Range : Maximum output 4*150V

Maximum output current : 3*35A or 1*105A

Accuracy : 0.2%

Application : lab, worksite

USB port : One

Web port : One

Contact Now

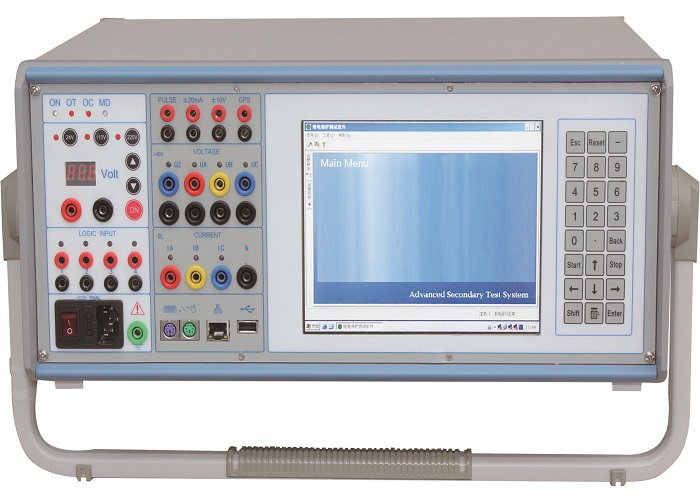

Protection Relay Test Kit MCRT43N

Features

  • High power & reliable amplifier
  • Adopting DSP technology
  • Stable and Reliable Output
  • Good accuracy
  • Self-protection function
  • Modularization Design & Mutual independent between different parts
  • Graphical testing modules and templates for testing of various relays
  • Electric meter testing (optional)
  • Transducer Testing (optional)
  • GPRS sync end-to-end testing (optional)
  • Transient Playback
  • Automatically create test report
  • Wrong wiring alarm and, overload and overheat protection
  • Operated by in-built computer or by PC

AC volts source MAX output voltage 4×150V
MAX output power 4×75VA
resolution 5mV
Accuracy ≤0.2%
Harmonic distortion ≤0.2%
Other Output amplitude/frequency/phase of each phase can be adjustable independently, and with short circuit protection and over current protection
AC current source MAX output current 3×35A or 1×105A
MAX output power 3×300VA or 1×900VA
resolution 1mA
Accuracy ≤0.2%
Harmonic distortion ≤0.2%
Other Output amplitude/frequency/phase of each phase can be adjustable independently, and with open circuit protection and over load protection
DC Volts MAX output voltage 4×150V
MAX output power 4×75W
Accuracy ≤0.2%
Other

Short-circui,over-current protection
DC current MAX output current 3×35A or 1×105A
MAX output power 3×300W or 1×900W
Accuracy ≤0.2%
Other Open circuit,Over-load protection
AUX DC voltage Output

0～250V continuously adjustable; Fast switch between 24,110V,220V;

Output Power:120W
other Short circuit,over-load protection
Phase range -360°～ +360°
accuracy 0.01°
frequency range DC 10～1000Hz
resolution 0.001Hz
drifting 5ppm

Binary input

 Quantities 8 pairs
Response time 50μs
timing range 1ms～999,999.999s
Input way

Idle contact

or Potential automatic identification,withstand voltage 250V
Other Auti-shake time adjustable

Binary output

 Quantities 4 pairs
Output way Idle contact, withstand voltage 250V ,capacity 250VA
DC measurement (transducer calibration) Voltage

one group, input±10V, accuracy <0.05%
Current one group, input ±20mA,accuracy <0.05%
impulse Max receivable frequency 30KHz
Energy Meter Calibration Type of meter under test Electromechanical & Electronic
Pulse Range Maximum frequency 2MHZ
Test Function Error test
Configuration 1 No optical sensor
Key board In-built 24 keys
external RS232
Display screen size 8.4 ``
resolution 800×600
color TFT
Touching screen LCD 8.4``
Mouse PS/2 port
USB port One
Web port one
size 471mm×192mm×363mm
weight 16.3kgs
Power Supply Single phase AC 90-260V, 50/60HZ, 3KW/15A
