Name: 35KV Instrument Transformer CT And PT Lab Standard Voltage Transformer
Brand: HNMC
Price: 1 USD

Brand Name : HNMC

Model Number : HJS35

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 Sets Per Month

Delivery Time : 30-45 days

Packaging Details : Wooden Package

Accuracy class : 0.05 or better

Application : Lab, Worksite, CT PT manufacturer

Rated Primary Voltage : 6-35KV

Rated Secondary : 100V, 100/√3V, 110V, 110/√3V

Contact Now

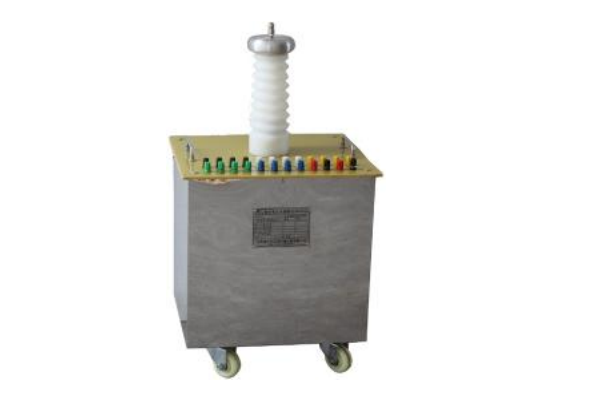

0.05 Class Standard PT with Voltage Generator 35KV HJS35

Technical Index

Rated Primary Voltage:	6kV(6/√3kV), 10kV(10/√3kV), 15kV(15/√3kV) 22kV(22/√3kV), 35kV(35/√3kV)
Rated Secondary Voltage:	100V, 100/√3V, 110V, 110/√3V
Rated Voltage Ratio:	6/0.1kV, 6/√3/0.1/√3kV, 6/0.11kV, 6/√3/0.11/√3kV 10/0.1kV, 10/√3/0.1/√3kV, 10/0.11kV, 10/√3/0.11/√3kV 15/0.1kV, 15/√3/0.1/√3kV, 15/0.11kV, 15/√3/0.11/√3kV 22/0.1kV, 22/√3/0.1/√3kV, 22/0.11kV, 22/√3/0.11/√3kV 35/0.1kV, 35/√3/0.1/√3kV, 35/0.11kV, 35/√3/0.11/√3kV
Accuracy Class:	0.05% or higher accuracy class avavailable
Rated Secondary Burden:	0.2VA (100V, 110V), 0.07VA (100/√3V, 110/√3V)
Power Factor:	COSΦ=1.0
Operating Range:	(20%-120%). Un
Frequency:	50Hz
Insulation:	Epoxy resin casting
Products Structure:	With voltage source
Input Voltage of Voltage Source:	AC 0-250V

Features

1. Used as a standard during PT testing

2. High accuracy and stability

3. Small excitation current

4. Small heat generation and without noise

5. Small corona sound benefiting from excellent design

6. Convenient for maintenance
